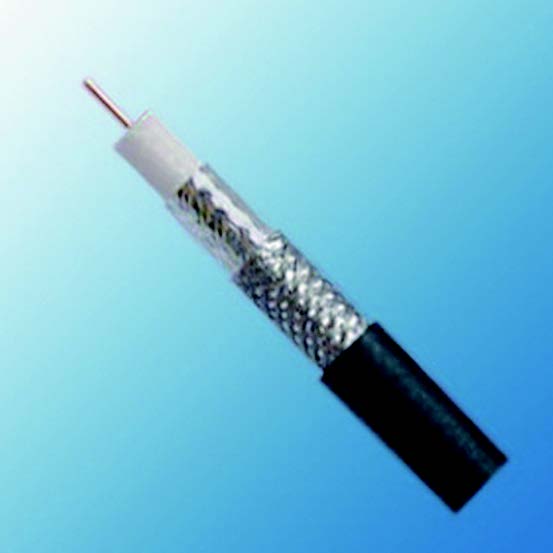

ACCL (ALMR) 400

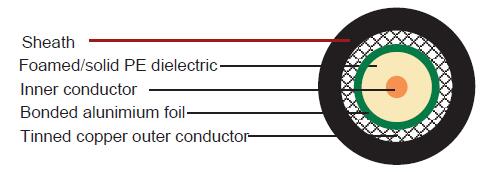

Construction
Construction
Inner conductor |
CCA (copper clad aluminium) |
Φ2.74 mm |
|---|---|---|
Dielectric |
Foam /Solid PE |
Φ7.24 mm |
Shield |
Bonded aluminium foil |
Φ7.39 mm |
Outer conductor |
Tinned copper braid |
Φ8.13 mm |
Sheath |
LSZH |
Φ10.29 mm |
Flame retardance |
IEC60332-3-22 |
|
Electrical & Mechanical Characteristics
Impedance |
50±3 Ohm |
|---|---|
Nominal capacitance |
78 pF/m |
Velocity of propagation |
85% |
Insulation resistance |
>5000 Mohm.Km |
Inner conductor resistance |
4.69 Ohm/Km |
Outer conductor resistance |
5.61 Ohm/Km |
Operating temperature range |
-40°C - +85 °C |
Min.bending radius |
51mm |
Attenuation
| Frequency(MHz) | Attenuation (dB/100 ft) |
Max. Attenuation(dB/100ft) |
|---|---|---|
| 30 | 0.7 | 0.84 |
| 50 | 0.9 | 1.07 |
| 150 | 1.5 | 1.7 |
| 220 | 1.9 | 2.1 |
| 450 | 2.7 | 3.0 |
| 900 | 3.9 | 4.3 |
| 1500 | 5.1 | 5.6 |
| 1800 | 5.7 | 6.3 |
| 2000 | 6.0 | 6.6 |
| 2500 | 6.8 | 7.4 |
| 3000 | 7.6 | 8.4 |
| 5800 | 10.8 | 12.0 |
